Glass Wool Sound Insulation Board

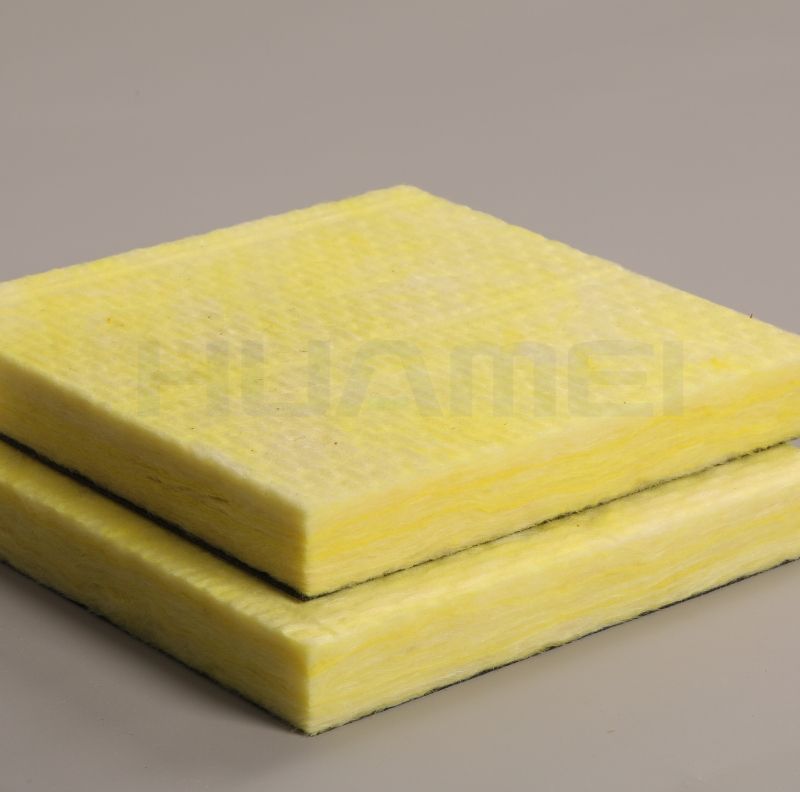

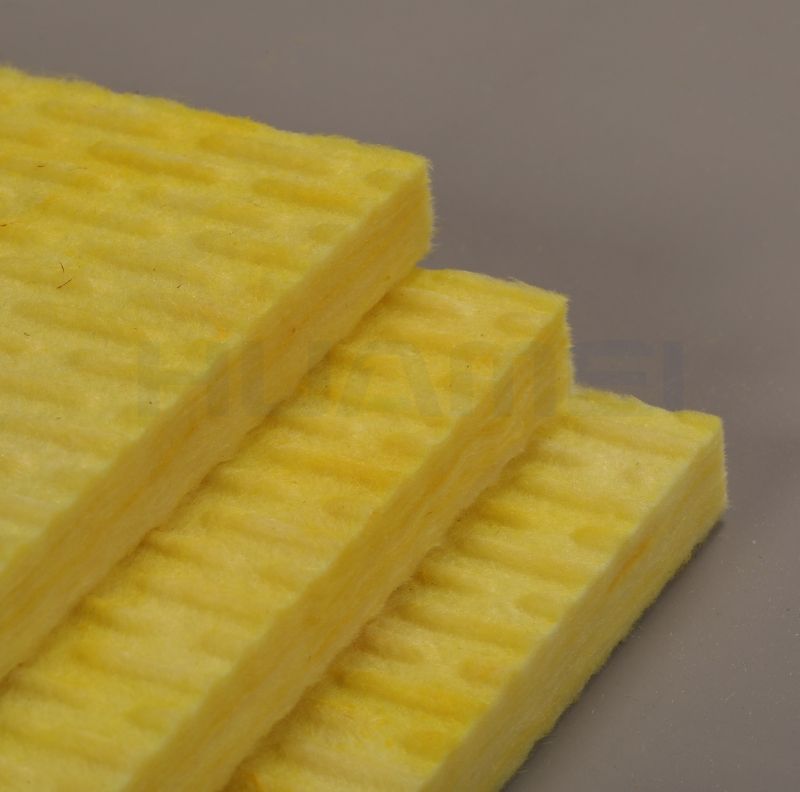

Huamei Jingyi Glass Wool Sound Insulation Board


Glass wool sound insulation sheet is used for building floor, based on the increasing demand of consumers for theliving environment, Huamei Group has developed a sound insulation sheet using a special formula process, whichcan effectively reduce the transmission of noise.lt can suppress the impact noise in the whole frequency rangeeffectively isolate the impact noise and the airborne noise, and the sound insulation board has excellent propertiessuch as thermal insulation,environmental protection and flame retardancy

Product Description

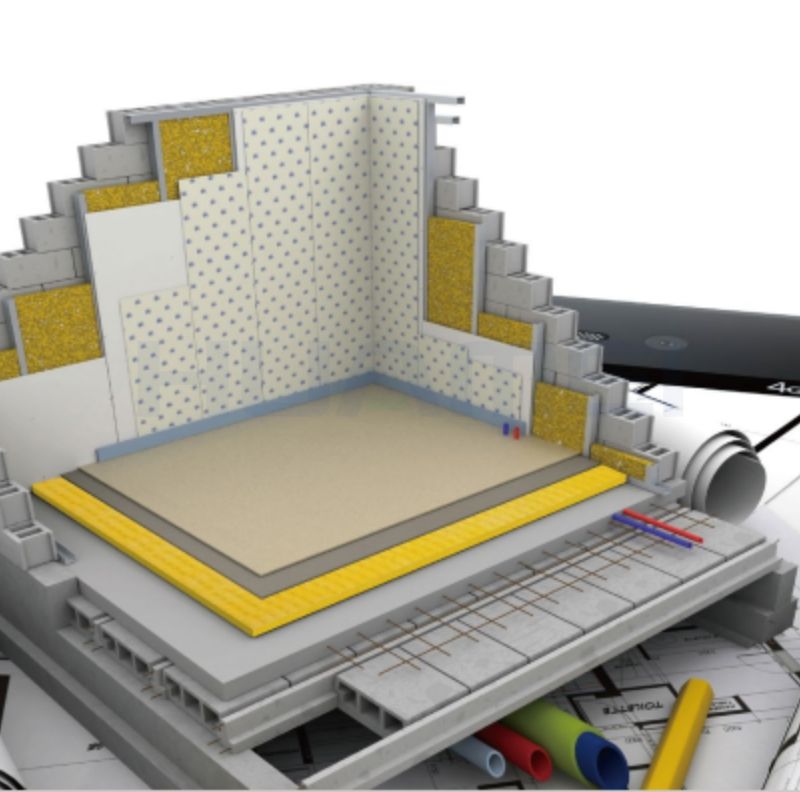

Huamei Installation of floor sound insulation board


Huamei Installation of floor sound insulation board

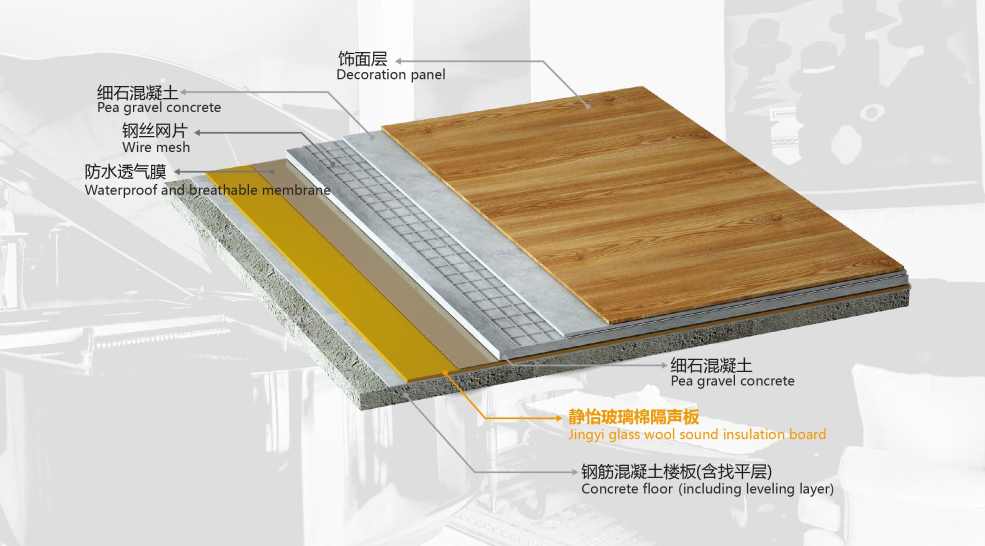

1.HUAlMEl jingyi glass wool sound insulation board will be laid on the concrete floor of the building. The edges of twoneighbors boards should be attached closely,. 3-5mm gaps should be ensured between the four edges of the panel and thebuilding wall.

2.The gap between the panels should be sealed by soundproofing sealant. 3-5mm gaps should be ensured between thefour edges of the panel and the building wall and sealed by soundproofing sealant.3.To lay pea gravel concrete on the soundproofing panel, make it level, then lay decoration materials on it.


Product Performance Table

ltemUnitSpecificationTest Standard
Densitykg/m3≥120GB/T 5480
Conductivity factorW/(m.K)≤0.035GB/T 10294
Hydrophobicity%≥98GB/T 10299
Compressive strengthKPa≥20GB/T 13480
Compressive creep%≤5.0GB/T 15048
Modulus of elasticity in compressionMPa≤ 0.5GB/T 13480
Compression set%≤5.0GB/T 15048
Flammability
A2GB 8624
Smoke toxicity grade
不低于 t1 级GB/T 20285
Smoke production characteristic grade
不低于 S2GB/T 11785
Formaldehyde releasingmg/(m2.h)≤0.050GB 32379
Total volatile organic compoundsmg/(m2 .h)≤ 0.200GB 29899
